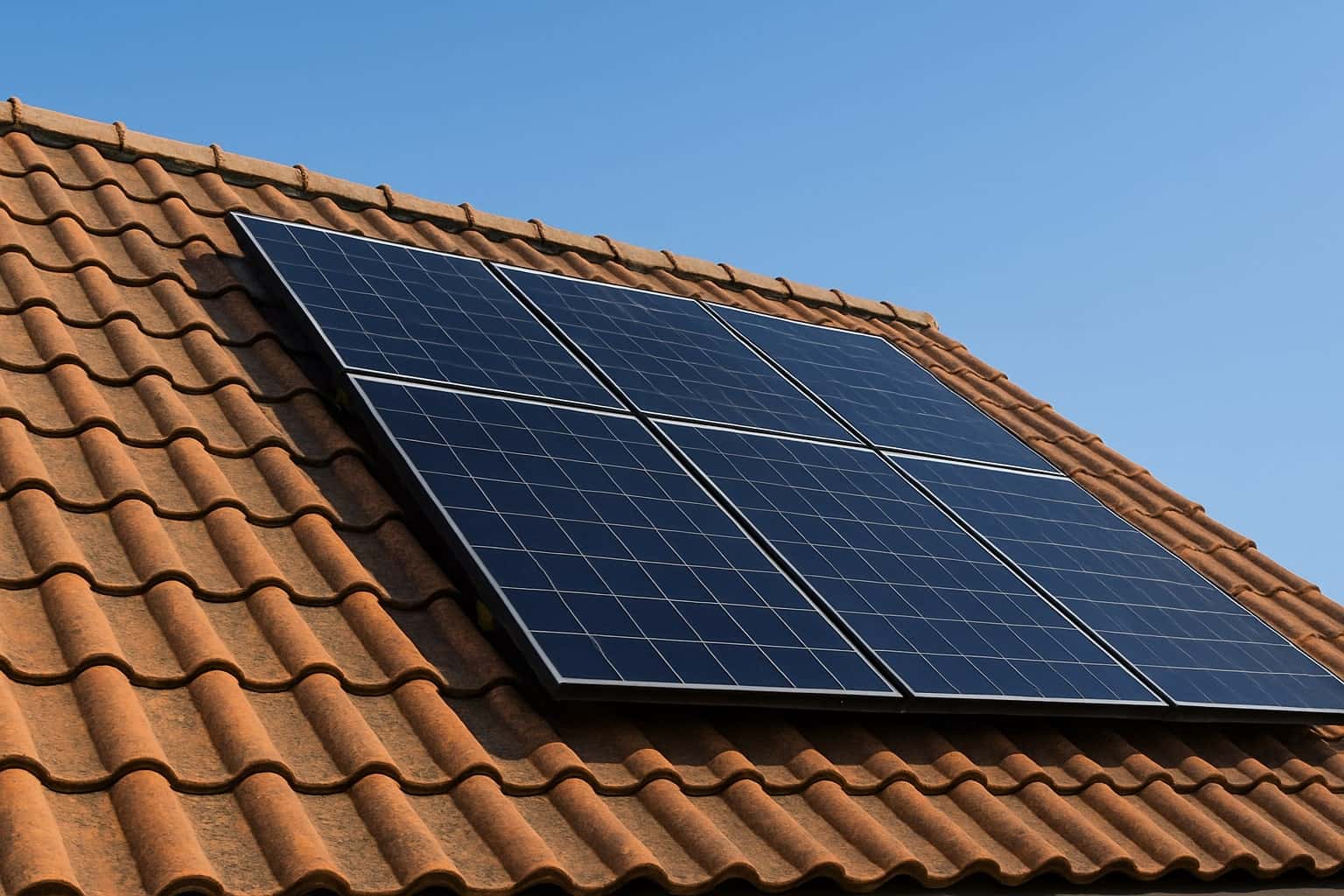

Installing solar on tile roofs requires more care than most other roof types. Each tile profile has its own shape, strength, and spacing and choosing the right tile roof solar hooks is what keeps everything solid, watertight, and inspection-ready.
This article explains how to recognize common tile profiles, match the right TRT03 hook, and maintain a clean drainage path without damaging the roof.
It’s a guide to making good decisions before you ever pick up a drill. For detailed engineering limits, installers should always use the TRT span table, which has been reviewed and approved by licensed professional engineers.
Understanding Tile Profiles
Every roof tile is different, but most residential roofs fall into three main shapes, S tile, W tile, and flat tile.
- S Tile: A single, flowing curve with a pronounced high crest and deep valley.
- W Tile: A double curve with alternating peaks and troughs, giving the roof a rhythmic look.
- Flat Tile: A clean, low-profile surface that lies close to the deck and needs minimal clearance.
The TRT03 Tile Hook System is designed to match these variations. Its curved-arm, offset, and low-profile versions allow installers to align with the natural shape of each tile without forcing awkward fits or cutting beyond what’s necessary.
Whether you’re working on batten-mounted clay tiles or direct-deck concrete tiles, there’s a version of TRT03 that aligns with your roof style and helps maintain the roof’s integrity.
For product photos, installation references, and downloadable specs, visit the TRT03 Tile Hook System product page on our site.
Choosing the Right Hook
The goal is simple: let the hook follow the tile’s shape instead of forcing the tile to adapt. A curved-arm hook fits neatly in the valley of an S tile, an offset hook bridges the contours of a W tile, and a low-profile hook fits tight under a flat tile without unnecessary grinding.
If you’re not sure which version to specify, start with a quick field check, lift a single tile, measure its underside clearance, and compare it to the hook diagrams in the TRT03 datasheet.
You can also reference the TRT Span Table, which lists certified attachment spacing and configuration notes for each roof type. The TRT Span Table was developed and reviewed by licensed professional engineers and should be referenced for all spacing or configuration decisions.
Protecting Roof Integrity
Tile roofs are beautiful but brittle. Instead of relying on complex structural calculations, the practical focus should be on keeping each layer intact. The tiles shed water, the underlayment protects the deck, and the hook’s job is to bridge both without blocking the drainage path.
Grinding should always be minimal and done only when a hook arm barely touches the tile surface. For fragile or older clay tiles, replacement is safer than grinding.
When resetting the tile, make sure the original overlap and slope are maintained. That overlap, not sealant, is what keeps water moving in the right direction.
Water should always flow smoothly over the hook, not around or against it. The TRT03 includes a shaped flashing that tucks beneath the tile and underlayment, guiding water back onto the natural path. A quick visual inspection or light hose test after installation can confirm that everything drains as it should.
For additional context on weather exposure and installation environments, read our related post, Designing for Wind and Snow Loads in Solar Mounting, which outlines how different climates influence mounting hardware selection.
Documentation and Submittals
Even with the right hardware, permitting can slow a project if submittals aren’t clear. The easiest way to avoid delays is to prepare concise, visual documentation that answers common plan-review questions upfront.
Include a page with:
- A clear tile profile photo (S, W, or flat)
- A lifted-tile photo showing the hook base properly seated beneath the tile
- A short note confirming the product is UL 2703 listed. This aligns with requirements in ICC 2021 PV Chapter, which governs photovoltaic mounting system listings.
For structural verification, simply attach the latest TRT span table and technical datasheet. These are the only documents inspectors need for standard installations, no additional calculations or third-party engineering stamps are required.
Attach the TRT span table exactly as provided. Do not annotate or modify this document, as it is a certified engineering reference. Any alterations could void its validity and shift responsibility away from the original engineer of record.
For tips on formatting submittals or addressing common plan-review comments, see Avoid Solar Permit Rejections.
Using the Span Table
Rather than estimating spacing or relying on general rules of thumb, installers should use the official TRT Span Table to plan every project.
This table defines allowable spans, attachment spacing, and configuration options verified by licensed engineers. It’s updated as code standards evolve, so referencing it ensures that your design stays current and fully compliant with product listings. The span table eliminates guesswork and keeps liability where it belongs, within certified product documentation.
If your AHJ or project owner requests verification, simply attach the latest TRT span table to your submittal package. It’s your proof that the system has been reviewed and approved by professionals.
If your project requires conditions outside the listed values, consult a licensed Professional Engineer.
Where TRT03 Fits Into a Mixed Installation Fleet
Many installers handle both comp-shingle and tile projects. The TRT03 shares design logic with other TRT systems, so crews can move between roof types without retraining. The same base concept, fastening pattern, and bonding approach carry through.
Only the arm geometry changes to fit the tile contour. That consistency saves setup time, simplifies inspections, and keeps field results predictable across every job.
Frequently Asked Questions
What if the tile is cracked or brittle?
Replace it. A clean new tile with a small notch fits better than a repaired one and maintains the original drainage surface.
Do I have to grind tiles?
Only if the hook lightly contacts the tile underside. Always keep grinding minimal and smooth to preserve the glaze and water flow.
Does this system meet certification requirements?
Yes. All TRT03 hooks are tested and listed to UL 2703, covering mechanical strength, grounding, and bonding.
Compliance and Trust
This content is for general informational purposes only. It does not provide engineering or legal advice and should not replace project-specific analysis. Always use TRT’s certified span table and follow product installation manuals when planning or executing a project.
Summary and Next Step
Each roof tells a story through its tiles, S, W, or flat and the right hook makes that story last.
Use TRT03 Tile Hooks to protect the roof’s integrity, keep drainage uninterrupted, and simplify AHJ approval. For certified design values, download the TRT Span Table and the TRT03 product datasheet directly from our site.
