TRT Tile Hook System TRT03 for S, W and Flat Tile Roofs

TRT Tile Hook System TRT 03

TRT Tile Hook System is a solar mounting solution built specifically for tile roofs, accommodating flat tiles, S tiles, and W tiles. The system uses high-quality aluminum and stainless steel 304 components, with three tile hook variants designed for different tile profiles. Tiles may need to be removed, adjusted, or notched to ensure proper fit around the hook during installation. The TRT Tile Hook System is UL 2703 listed, PE certified, and maintains the fire resistance rating of the existing roof. For base spacing and layout requirements, always reference TRT’s PE-certified span tables.

The universal panel clamp fits modules from 30 to 40mm in thickness and functions as both a mid-clamp and end-clamp, simplifying component management across the installation. Optional accessories include cable clips, bonding jumpers, microinverter racking kits, and wire management components. Before specifying your system, review how wind and snow load requirements affect tile roof solar mounting in your region.

Technical Overview

Product Specifications

Specification Detail

System TRT03 Tile Hook System

Roof Type S tile • W tile • Flat tile

Certification UL 2703 Listed

Fire Rating Maintains existing roof fire resistance rating

Tile Hook Variants Hook 1 (S/W tiles) • Hook 2 (S/W tiles) • Hook 3 (flat tiles)

Hook Material Stainless steel 304

Fasteners 5/16" × 3" or 5/16" × 4" lag bolts

Frame Compatibility 30–40mm solar panel frames

Max Panel Size Less than 1722mm × 1134mm

Mid Clamp Frame Height 26–37mm

Rail Material Aluminum 6005-T5 • Integrated wire management

Bonding Bonding jumper included for N-S and E-W module connections

PE Certified ✓ Yes

Warranty 25 Years

Specification	Detail
System	TRT03 Tile Hook System
Roof Type	S tile • W tile • Flat tile
Certification	UL 2703 Listed
Fire Rating	Maintains existing roof fire resistance rating
Tile Hook Variants	Hook 1 (S/W tiles) • Hook 2 (S/W tiles) • Hook 3 (flat tiles)
Hook Material	Stainless steel 304
Fasteners	5/16" × 3" or 5/16" × 4" lag bolts
Frame Compatibility	30–40mm solar panel frames
Max Panel Size	Less than 1722mm × 1134mm
Mid Clamp Frame Height	26–37mm
Rail Material	Aluminum 6005-T5 • Integrated wire management
Bonding	Bonding jumper included for N-S and E-W module connections
PE Certified	✓ Yes
Warranty	25 Years

01

UL 2703 LISTED

The entire system is fully compliant with UL2703 standards.

02

PE CERTIFIED

Reviewed and approved by a Professional Engineer (PE) to ensure compliance with safety standards and adequate load capacity.

03

25 years warranty

Ensures a worry-free experience throughout the product's service life.

Rail (A188-2300&4270)

Roof rail made from Aluminum 6005-T5 for standard conditions, featuring integrated wire management.

Rail Connector (3010404)

Splice designed to connect TRT rails, made from high-quality aluminum.

Mid Clamp (3010355)

Black surface treatment, compatible with modules 26 to 37mm thick, and equipped with a grounding device.

Hidden End Clamp (3010138)

Secures modules to rail ends with a fully hidden bond, with no restrictions on module size or thickness.

Tile Hook 1 (3010369)

Directly attaches to TRT Rail with multiple adjustment options to accommodate various tile roof types, compatible with 5/16" x 3" or 5/16" x 4" lag bolts.

Tile Hook 2 (3010370)

Made from stainless steel 304, designed for direct attachment to TRT Rail, compatible with W or S-shaped tiles, and uses 5/16" x 3" or 5/16" x 4" lag bolts.

Tile Hook 3 stainless steel solar mounting hook with lag bolts for flat tile roofs – TRT03 tile roof solar hook system.

Tile Hook 3 (3010371)

Made from stainless steel 304, designed for direct attachment to TRT Rail, compatible with flat tiles, and uses 5/16" x 3" or 5/16" x 4" lag bolts.

Skirt (A197-2300)

Customizable length options, easy assembly, compatible with any thickness of solar module, and aesthetically pleasing.

Grounding Lug (3010407)

Designed specially for TRT Rail.

Micro Inverter Racking (3010167)

Rail based system micro inverter holder

Skirt clip (3010363)

Fits modules ranging from 26 to 40mm in thickness.

End Cap (1040088)

Provides a complete finish to the installation, eliminating safety hazards at the base end.

Bonding Jumper (3010406)

To connect N-S modules or E-W modules

Cable clip (1011004)

Cable clip is a universal wire management clip that can be used with all systems

Wire cap (1040089)

Keep the cables in the rail cavity from slipping out

Skirt Connector (3010405)

Splice connection for the skirt, made from high-quality aluminum.

Skirt Cap-L (1040108)

Provides a complete finish to the installation, preventing safety hazards at the end of the skirt.

Skirt Cap-R (1040109)

Provides a complete finish to the installation, preventing safety hazards at the end of the skirt.

Wire Management (3010168)

Manage cables laid vertically with rails.

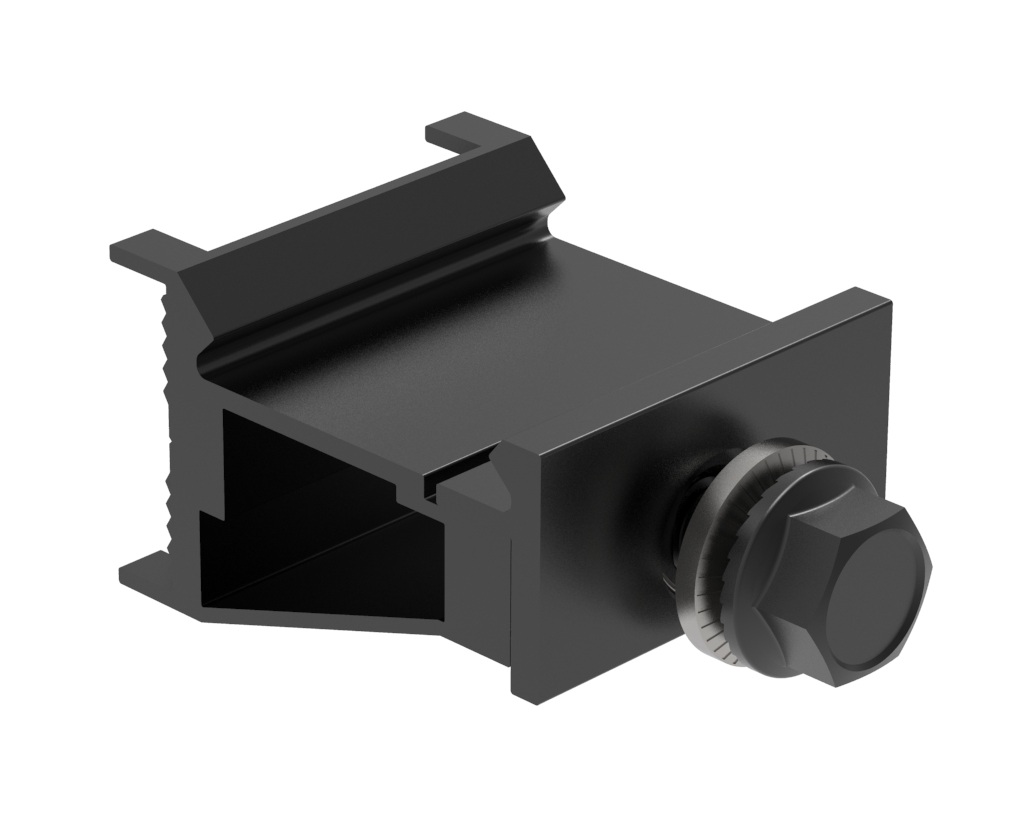

Rail Holder (Fastener) 4 Tabs (3010364)

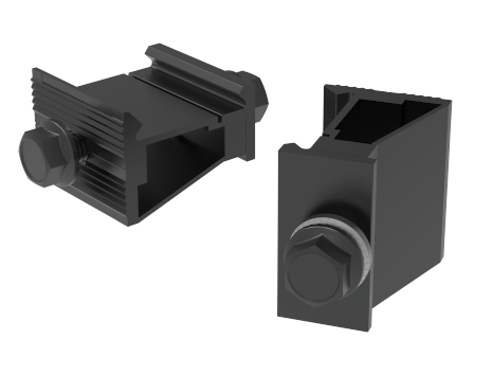

Rail Fastener-No Tab (3010365)
